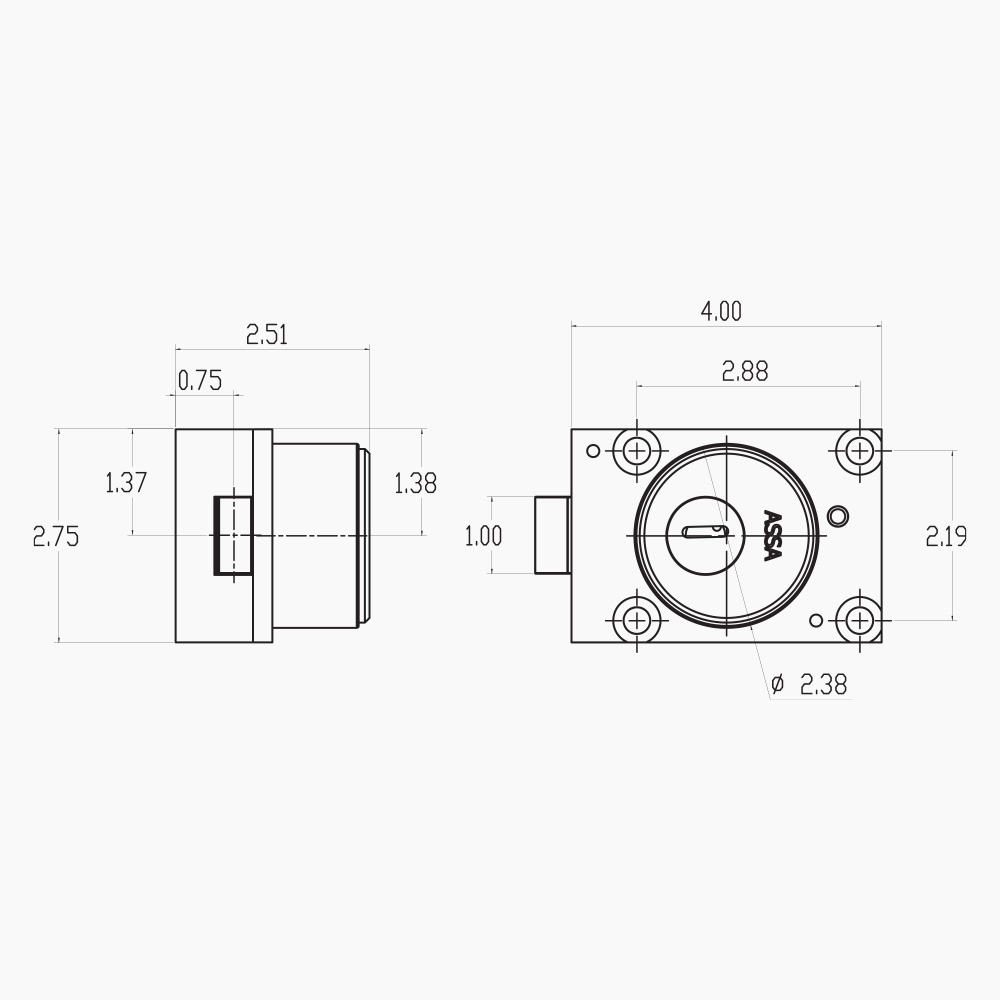

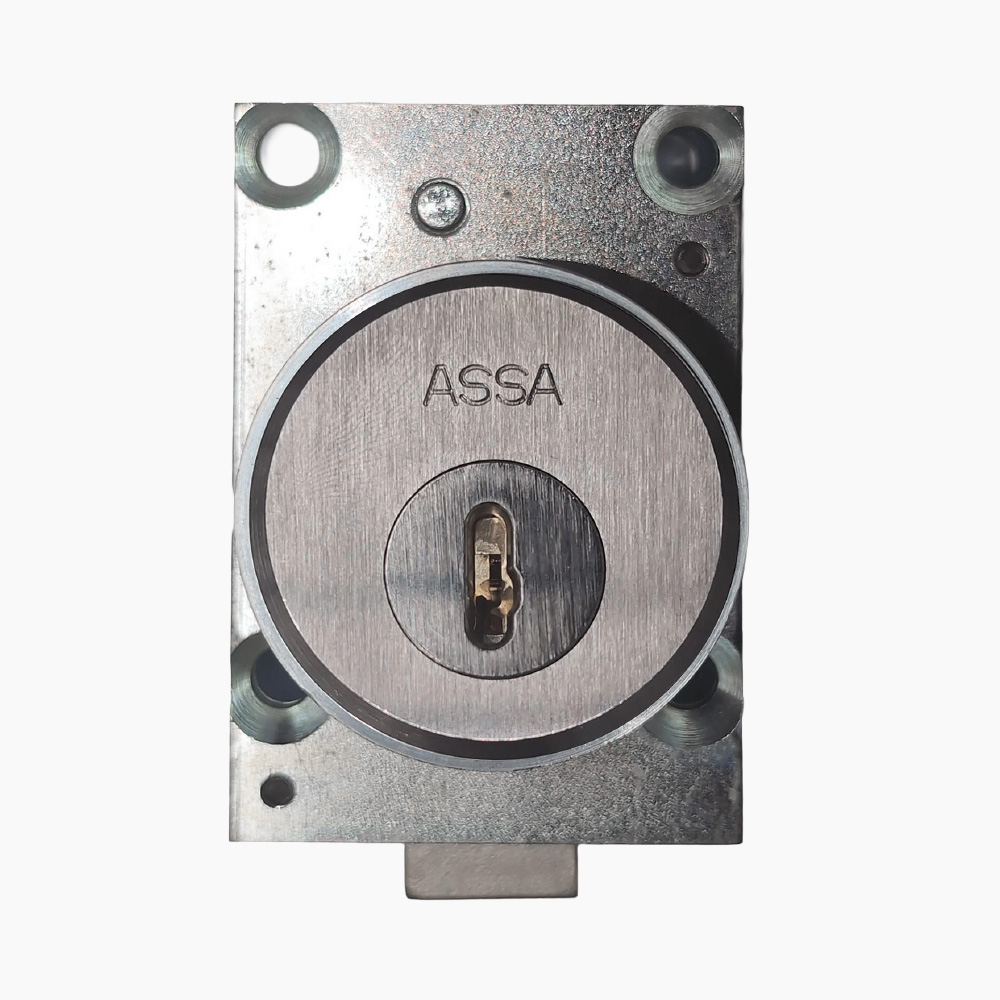

18 Mechanical Latch
The 18 Series is a security latch for use in food pass, observation, locker, and other small doors where slam-locking is preferred and deadlocking is not required. Not recommended for cell doors.
18 Mechanical Latch
18 Mechanical Latch
Standard Features
- 7 /16” Bolt Throw
- 1” x 7 /16” Latchbolt
- 1 /2” Projection
- 1/4” Cold Drawn Steel Cover
- Heavy Duty Cast Case
- Corrosive Resistant Parts
- Heavy Duty Brass Tumblers
- All Zinc Plated Exterior
- Investment Cast Key Cylinder
Mountings
(See Hollow Metal/Plate/Grille Mountings page)
RELATED PRODUCTS
70 Mechanical Snaplock
The 70 Series Mechanical Snaplock is a swing door lock designed for use in maximum security applications for corridor door, day room doors, recreational areas or dining rooms. The 70 is also suitable for control cabinets and storage rooms.
Operation Details
The 70 Series deadlatch is an automatic deadlock that has the convenience of slam locking.
The 70 Series operates by paracentric key which releases the automatic deadlock and retracts the latchbolt.
85 Mechanical Deadbolt
The 85 Series Mechanical Deadbolt is a solid deadbolt designed for cell doors, corridor doors and day room doors, for use in maximum security applications. They are also suitable for access doors, storage rooms and control cabinets. The 85 Series operates by Assa key cylinder, which releases the deadlock and retracts the latchbolt.
