800 Solenoid-Operated Gate Lock
Applications
The 800 is a solenoid operated lever tumbler lock designed for swinging or sliding fence gates.
Operation Details
The 800 deadlocking gate lock is solenoid operated. When the gate is in a closed condition, the deadbolt is deadlocked preventing the locking tongue from being retracted. Once the solenoid is energized, the deadlock lever is moved aside and the deadbolt is lifted. The lock is held electrically open until the locking tongue is returned to a closed position.
The deadlock indicator switch provides monitoring of the deadlocked condition as well as the full projection of the deadbolt. The slide bolt monitors the position of the lock’s tongue.
The lock may be unlocked for an extended period of time by use of a maintained-contact switch.
Description
ELECTRO-MECHANICAL

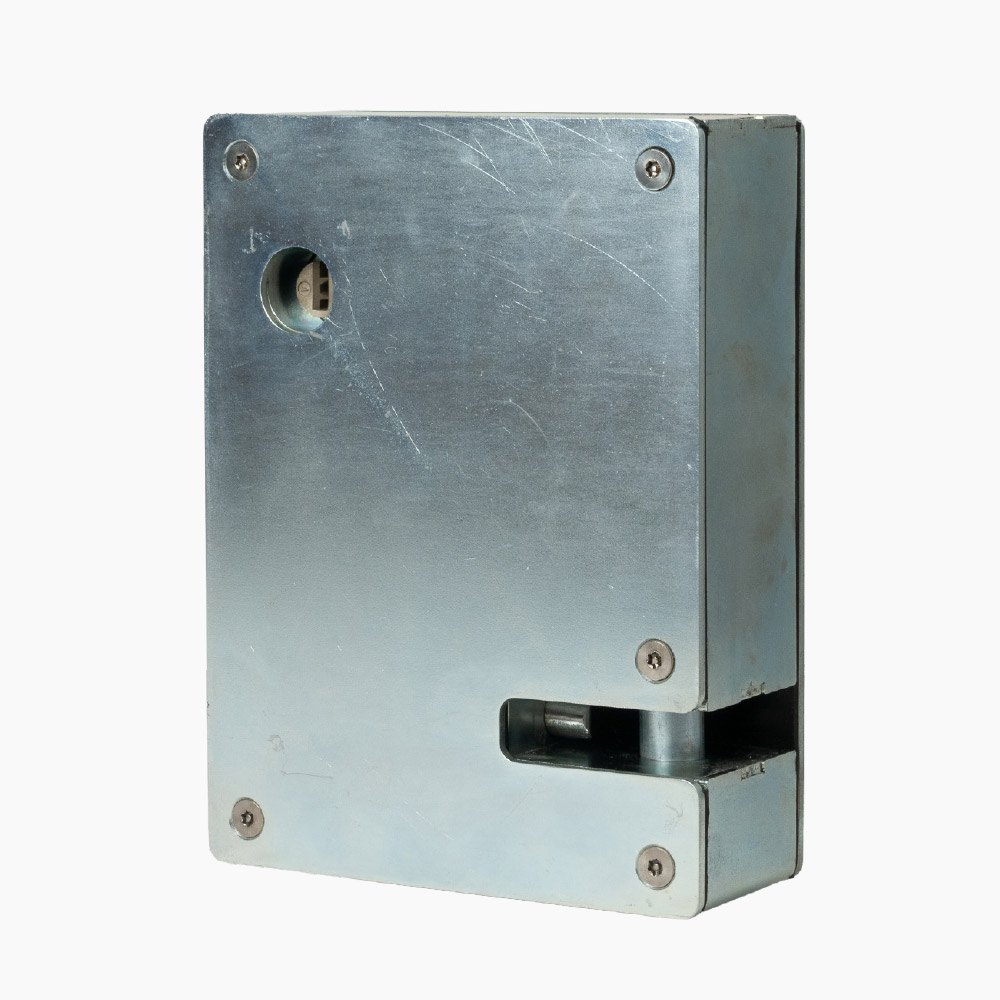

800 Solenoid-Operated Gate Lock
Operation
Latch unlocks by momentary switch action. Once retracted, bolt is electrically retracted until gate is closed.
In case of power failure, mechanically operated by paracentric key.
Accessories Included (A, B or C)

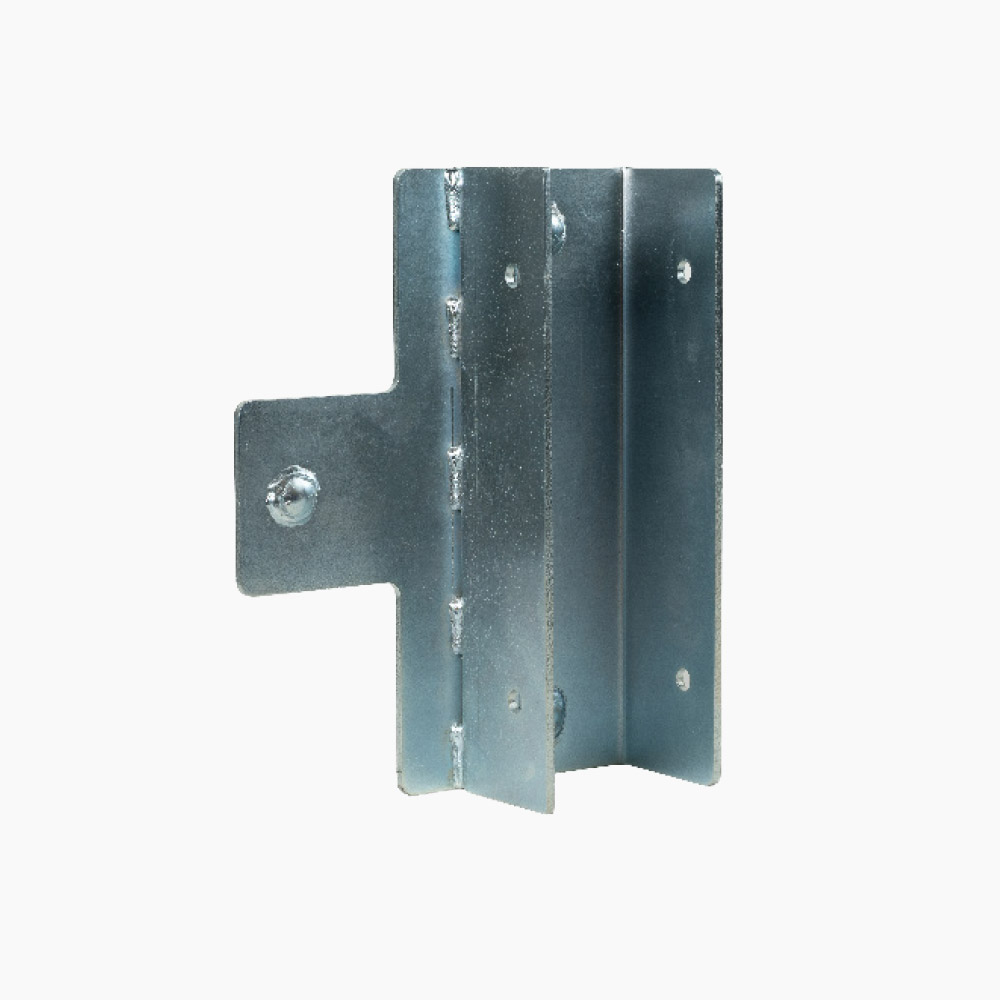

- A. 4" Post Mounting Plate

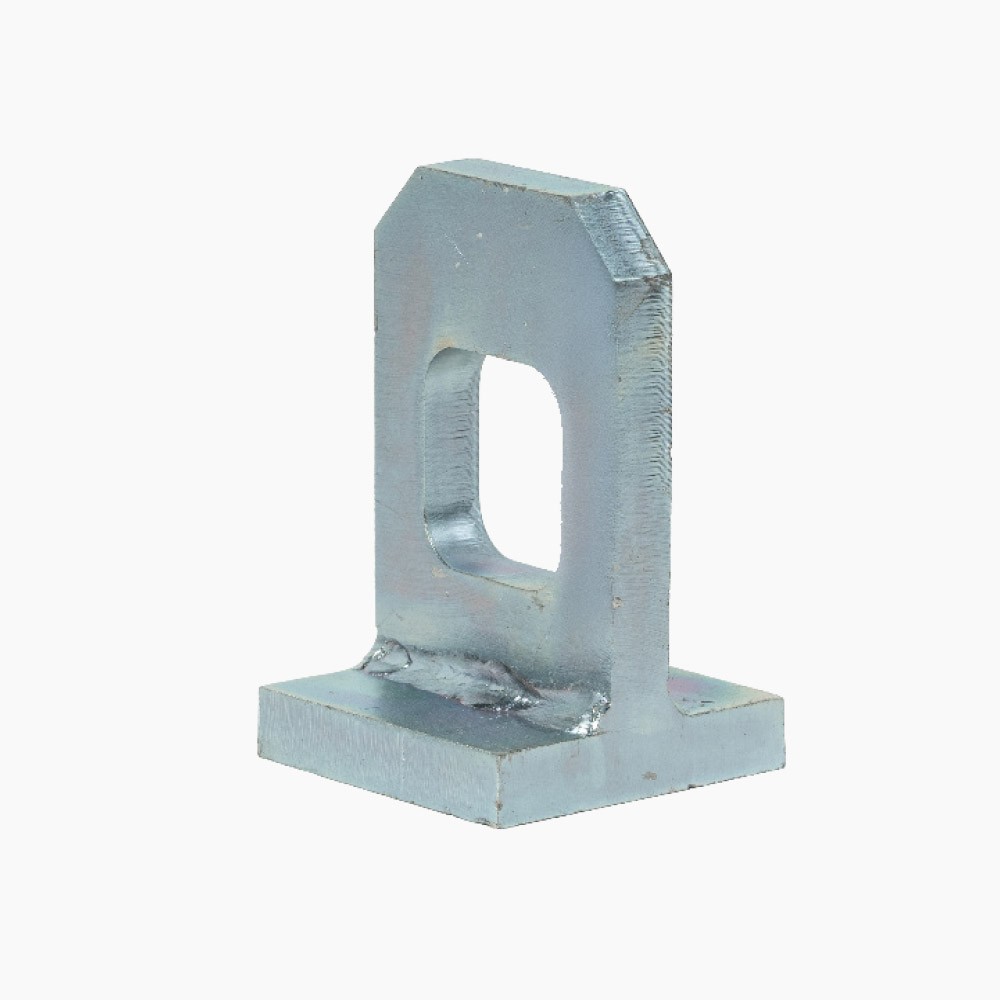

- B. Sliding Gate Tongue

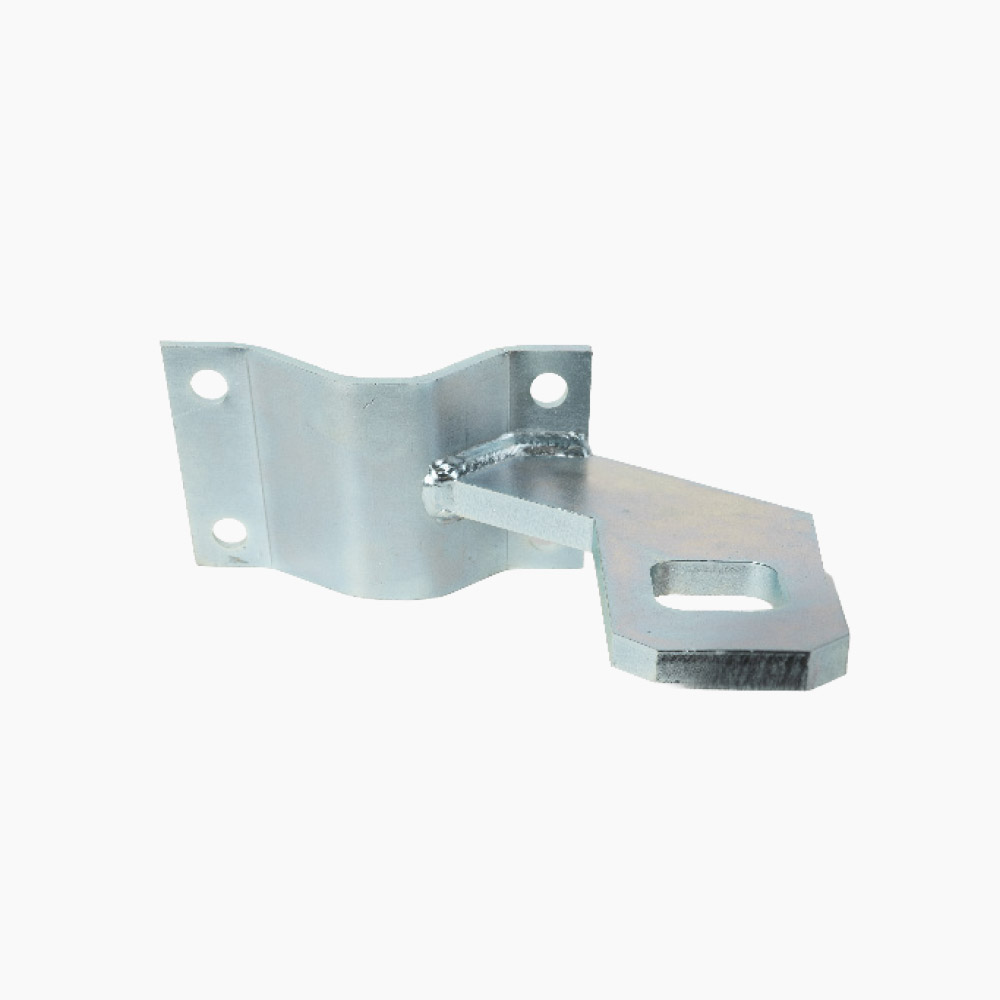

- C. Swinging Gate Tongue
Additional Details
ELECTRO-MECHANICAL
800 Solenoid-Operated Gate Lock
Standard Features
- 120 VAC Solenoid
- 1” Throw Latchbolt
- Deadlock Indicator Switch
- Heavy Duty Construction
- Corrosive Resistant Parts
- External Mounting Holes
- External Mounting Plate
- Manual Key Release
- Easy Wiring Field Plug
- 1/2” Zinc Plated Locking Tongue
Component Specifications
- Solenoid - 120 VAC 60hz
- 10 Gauge Steel - Zinc Plated Case &
Cover - Deadbolt - 1” Zinc Plated Round Bolt
- Plunger - Stainless Steel
- 1/2” Zinc Plated Gate Tongue
- 10 Gauge Adjustable Zinc Plated
Mounting Bracket - Deadlock Lever - Zinc Plated Steel
- Operating Lever - Zinc Plated Steel
- Springs - Bronze Alloy
Keying
- Available 5 or 6 Tumbler
- Available in keyed on keyed both sides only
- Swing or Slide (See Handing Chart Guide)
