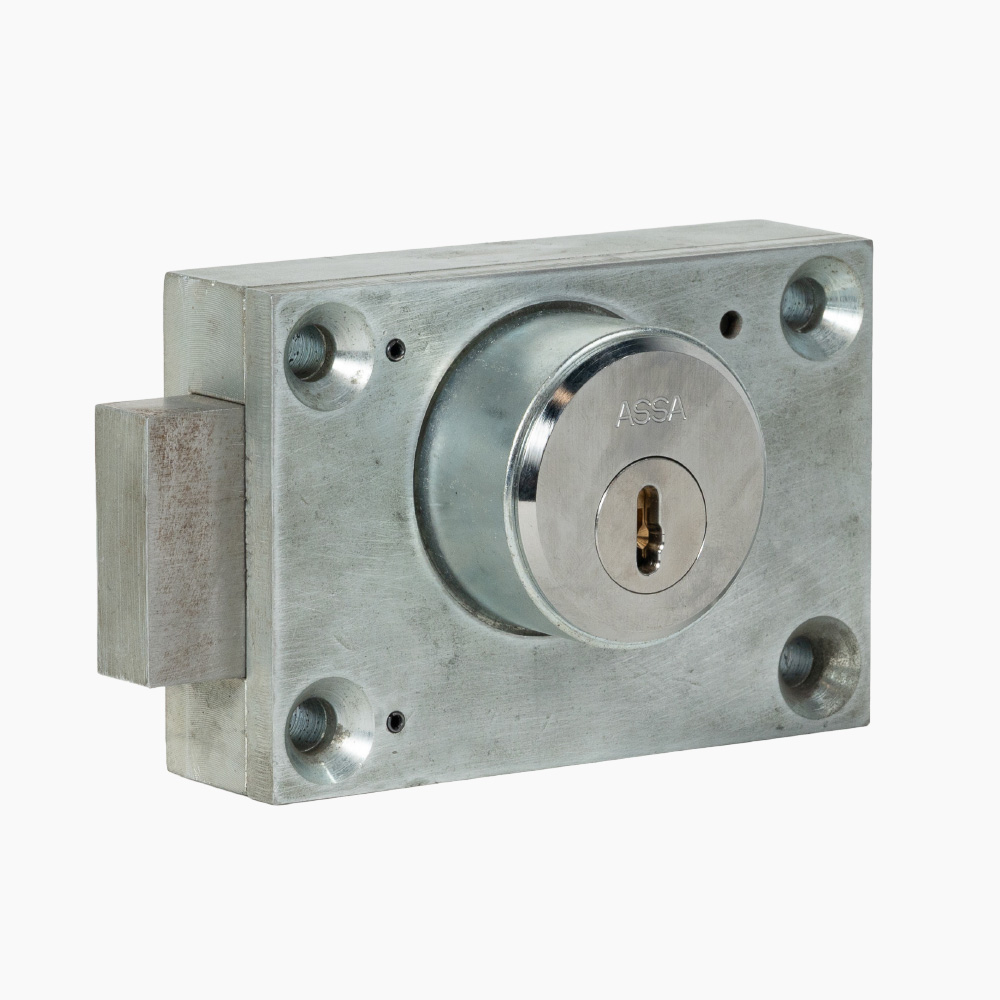

85 Mechanical Deadbolt
The 85 Series Mechanical Deadbolt is a solid deadbolt designed for cell doors, corridor doors and day room doors, for use in maximum security applications. They are also suitable for access doors, storage rooms and control cabinets. The 85 Series operates by Assa key cylinder, which releases the deadlock and retracts the latchbolt.
Description
MECHANICAL
85 Mechanical Deadbolt
Additional Details
MECHANICAL
85 Mechanical Deadbolt
Standard Features
- 3/4” Bolt Throw
- 3 Hardened Steel Pins in Bolt
- Mogul Key Cylinder
- 1 /2” or 1 1 /4” Projections
- 1/4” Cold Drawn Steel Cover
- Heavy Duty Cast Case
- Corrosive Resistant Parts
- 1 1/2” x 3/4” Deadbolt
- All Zinc Plated Exterior
- Investment Cast Key Cylinder
Keying
(See Handing Chart Guide)
Optional Features

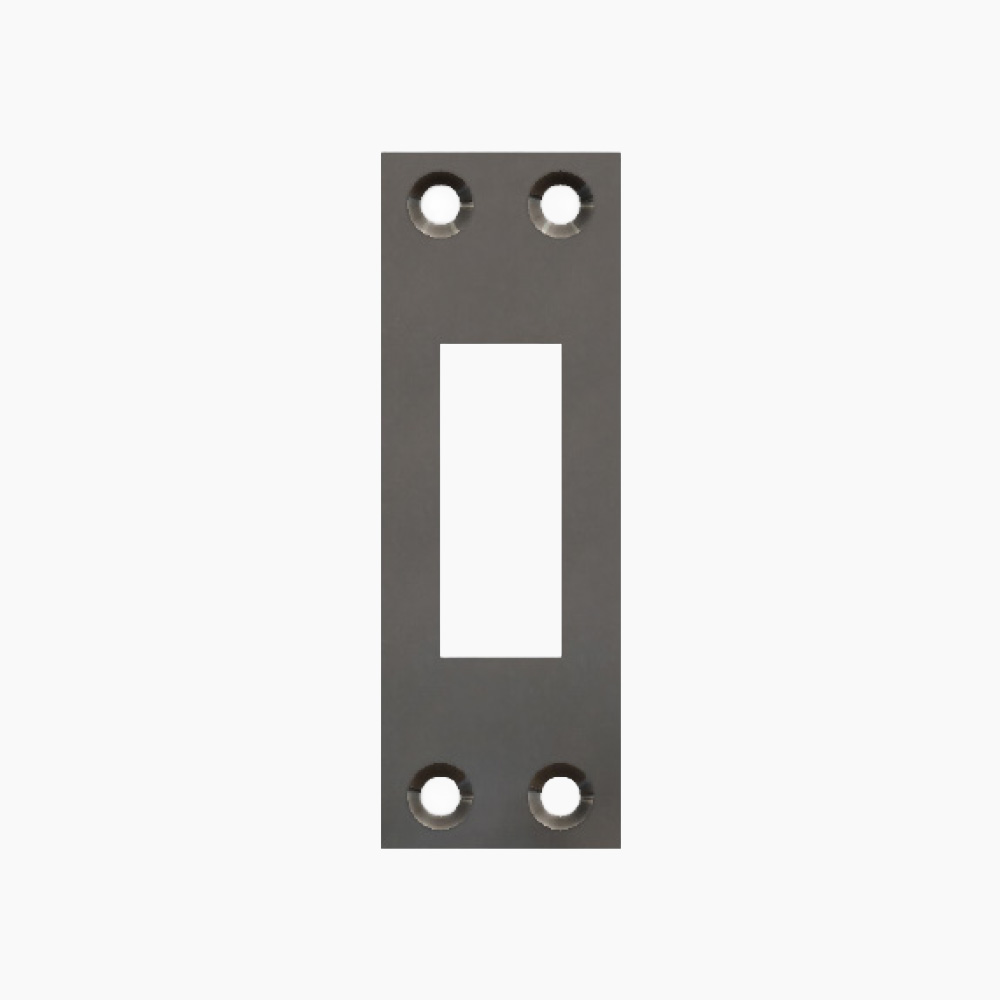

- 85KP - Standard Keeper
- 85SW - Keeper switch
- 85DB - Keeper with dust box
- 85SF - Surface mounted keeper
(Mounting screws included)
(See Escutcheons)
Mountings
