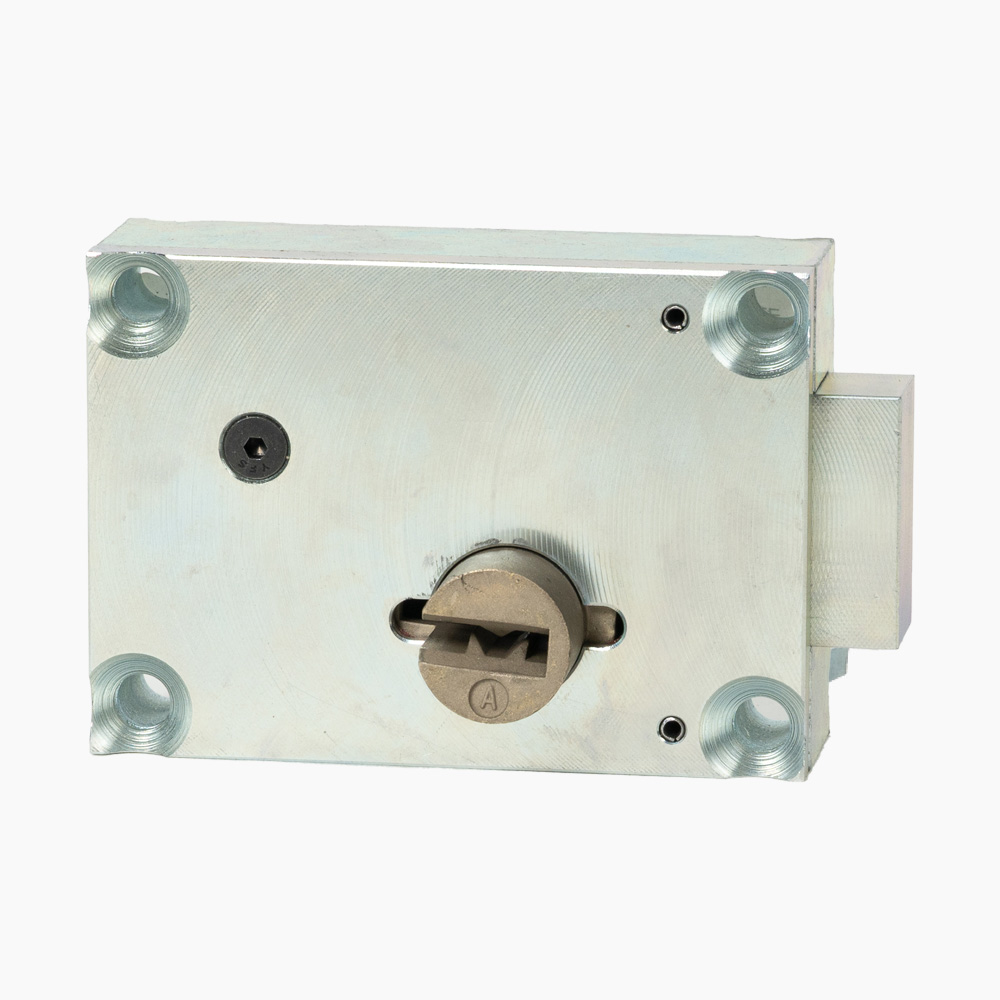

10 Mechanical Deadbolt
The 10 Series Mechanical Deadbolt is a swing door lock for use on small doors. such as plumbing chases, access panels and hatch doors. This lock is not recommended for use on cell doors.
Description
MECHANICAL
10 Mechanical Deadbolt
Additional Details
MECHANICAL
10 Mechanical Deadbolt

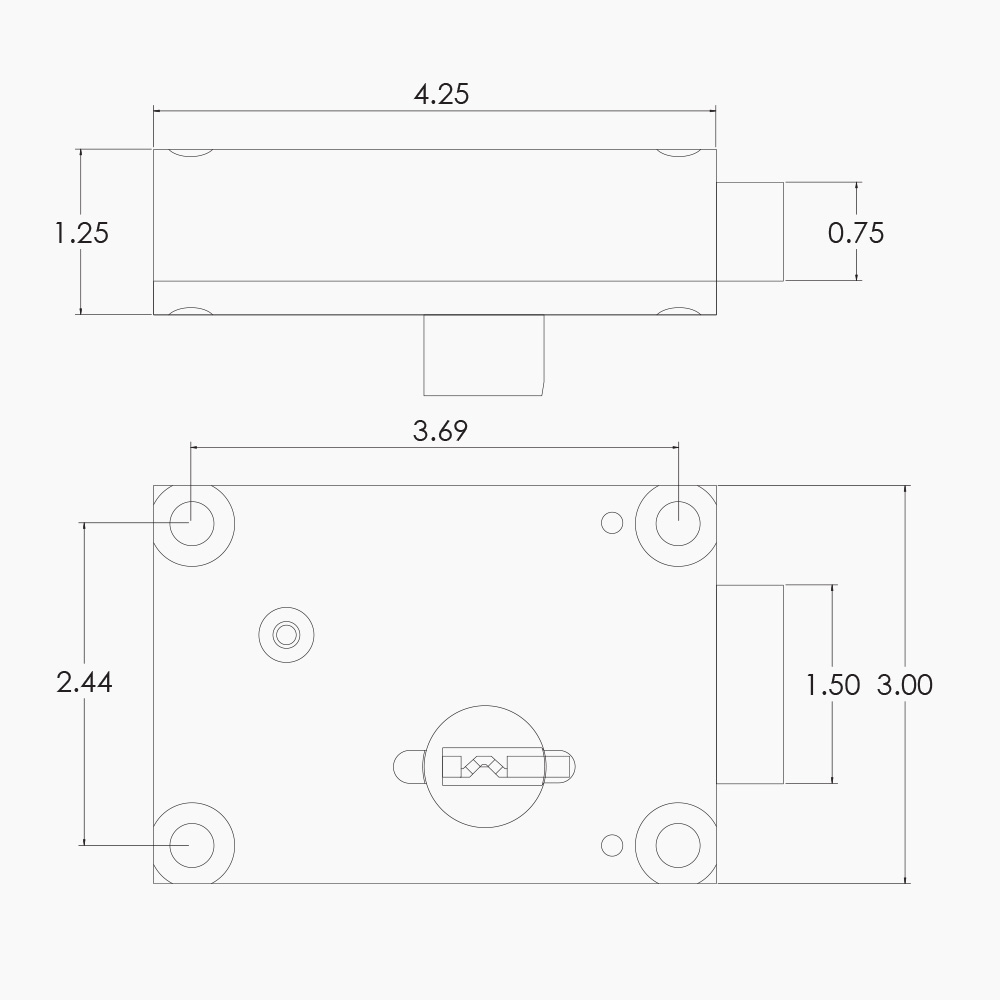

Standard Features
- 5/8” Bolt Throw
- 1 /2” or 1 1 /4” Projections
- 1/4” Cold Drawn Steel Cover
- Heavy Duty Cast Case
- Corrosive Resistant Parts
- Heavy Duty Brass Tumblers
- 3/4” x 1 1/2” Deadbolt
- All Zinc Plated Exterior
- Investment Cast Key Cylinder
- Mounting Screws Included
Optional Features
- 10KP - Standard Keeper
- 10SW - Keeper switch
- 10DB - Keeper with dust box
- 10SF - Surface mounted keeper
Escutcheons
- Single Wing
- Double Wing
Mountings
