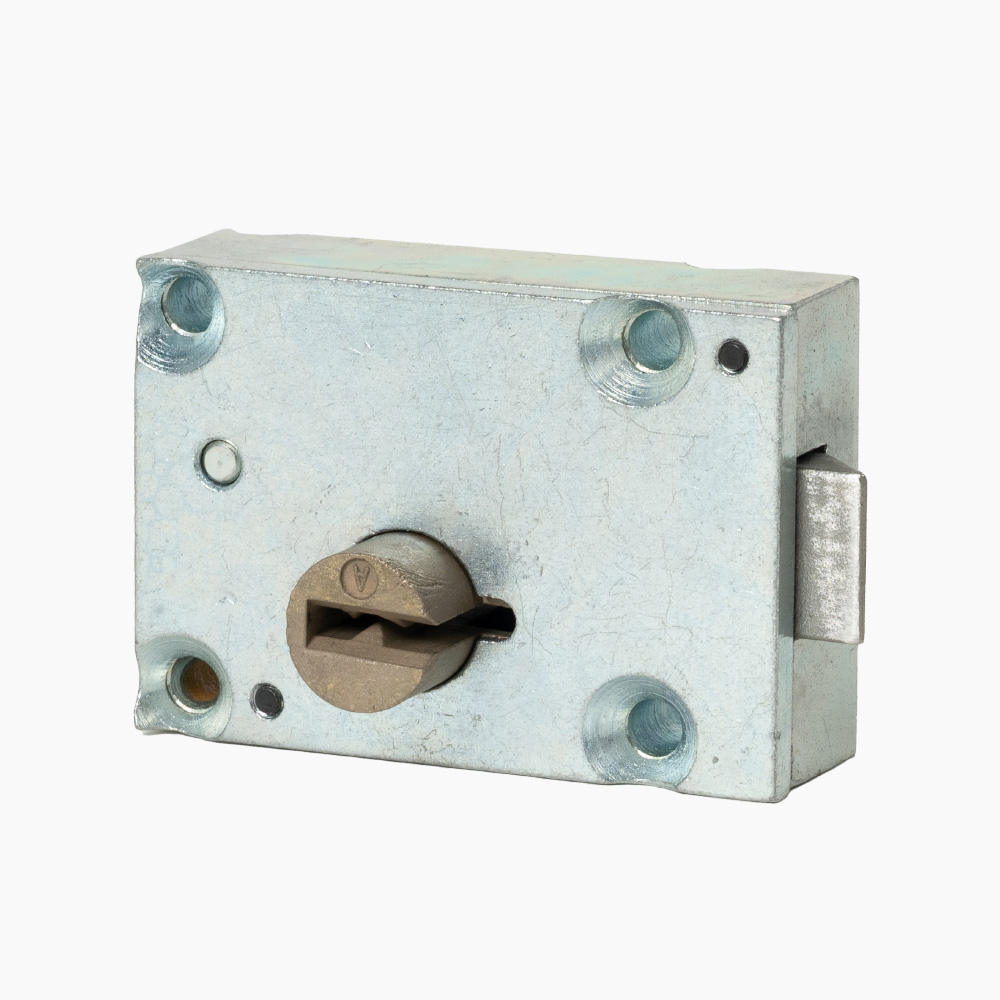

17 Mechanical Latch
The 17 Series is a security latch for use in food pass, observation, locker, and other small doors where slam-locking is preferred and deadlocking is not required. Not recommended for cell doors.
17 Mechanical Latch
17 Mechanical Latch
Standard Features
- 7 /16” Bolt Throw
- 1” x 7 /16” Latchbolt
- Reverse or Standard Bevel
- 1/4” Cold Drawn Steel Cover
- Heavy Duty Cast Case
- Corrosive Resistant Parts
- Heavy Duty Brass Tumblers
- All Zinc Plated Exterior
- Investment Cast Key Cylinder

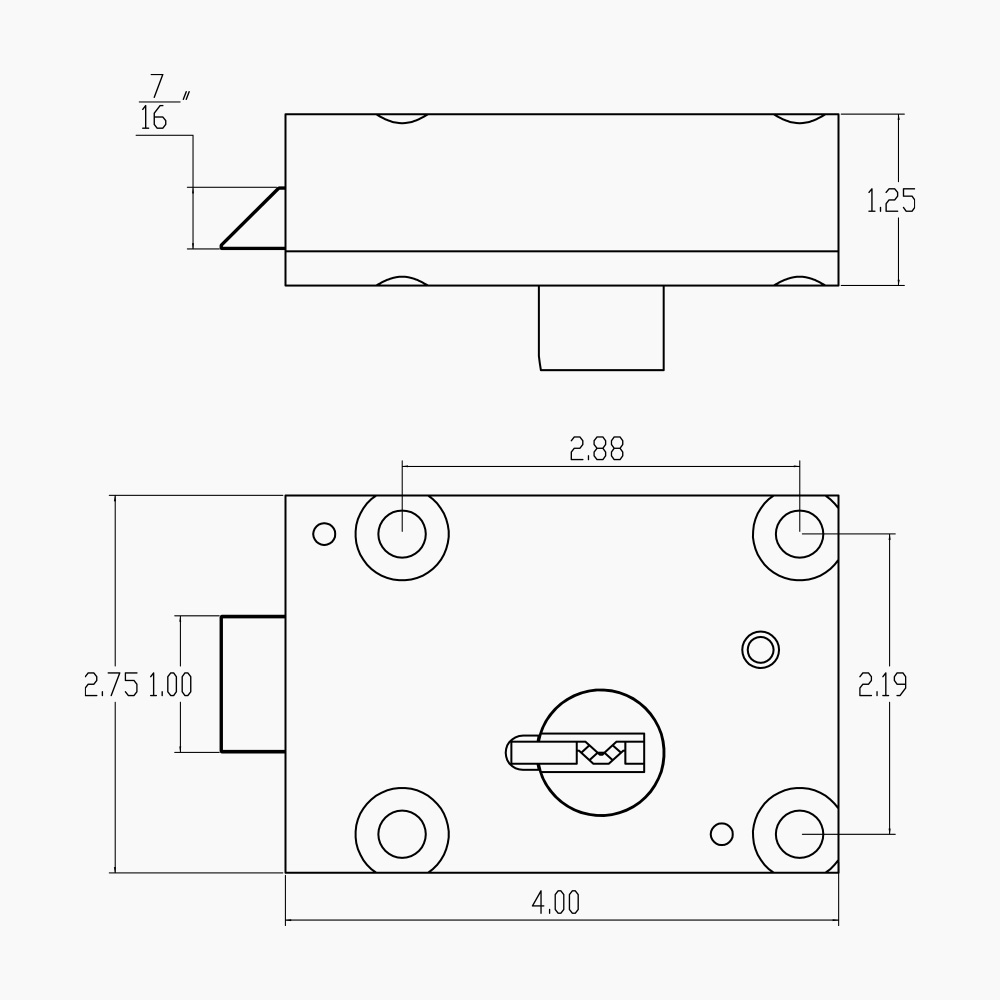

Mounting
