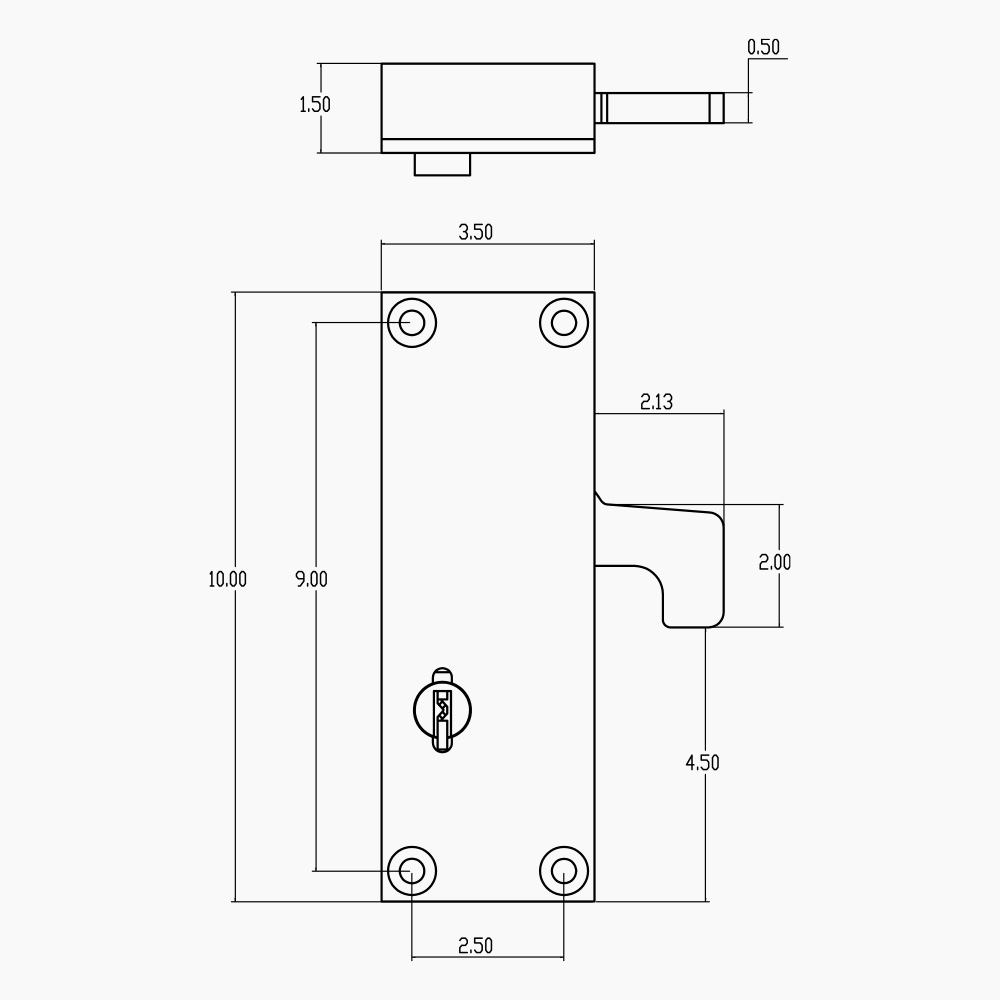

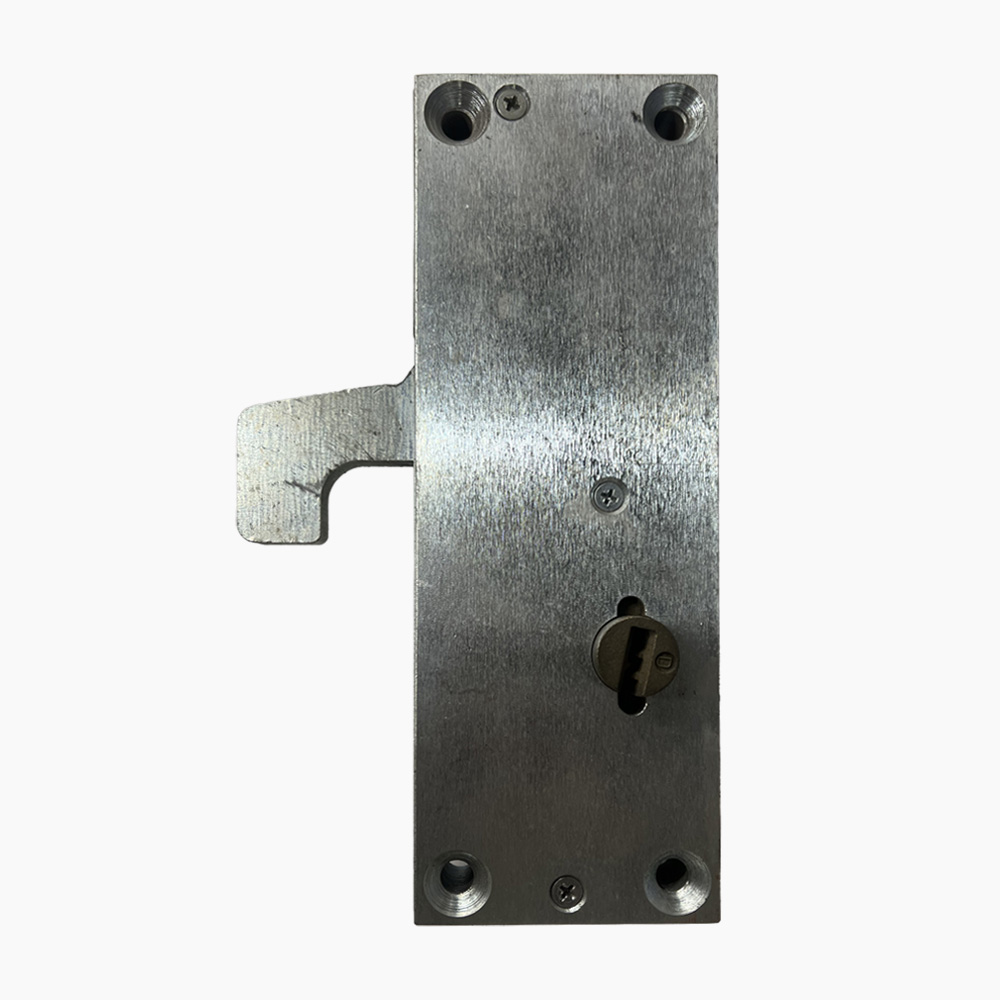

30 Mechanical Hookbolt

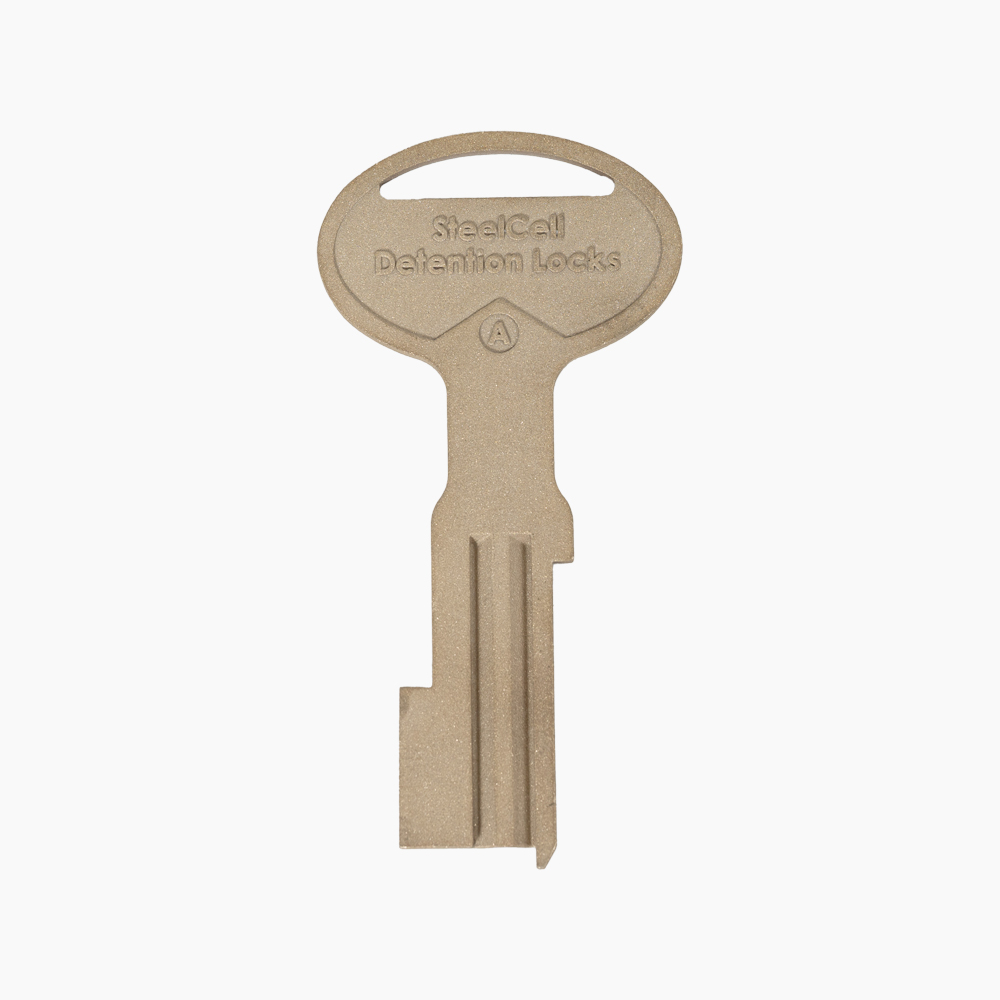

The 30 Series Mechanical Hookbolt is a sliding door lock for use on cell doors, corridor doors, dayroom doors and dormitory door applications. The 30 is also suitable for control cabinets and storage rooms. The lock is operated by a paracentric key which lifts the hookbolt to unlock the door.
Description
MECHANICAL
30 Mechanical Hookbolt
Additional Details
MECHANICAL
30 Mechanical Hookbolt
Standard Features
- 1 /2” Hookbolt
- 3/16” Steel Cover
- Heavy Duty Cast Case
- Corrosive Resistant Parts
- Heavy Duty Brass Tumblers
- All Zinc Plated Exterior
- Investment Cast Key Cylinder
Optional Features
- 30KP - Standard Keeper
- 30SW - Keeper switch
- 30DB - Keeper with dust box

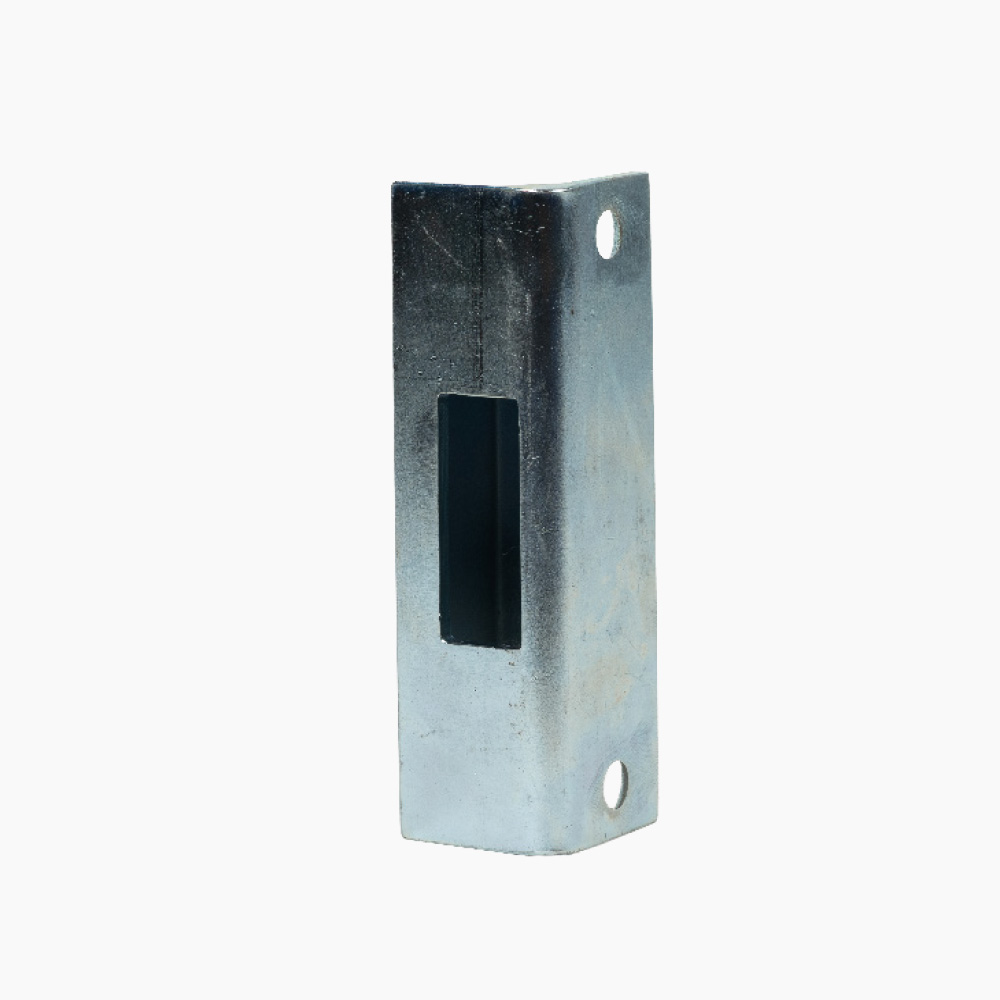

- 30SF - Surface mounted keeper
(Mounting screws included)
RELATED PRODUCTS

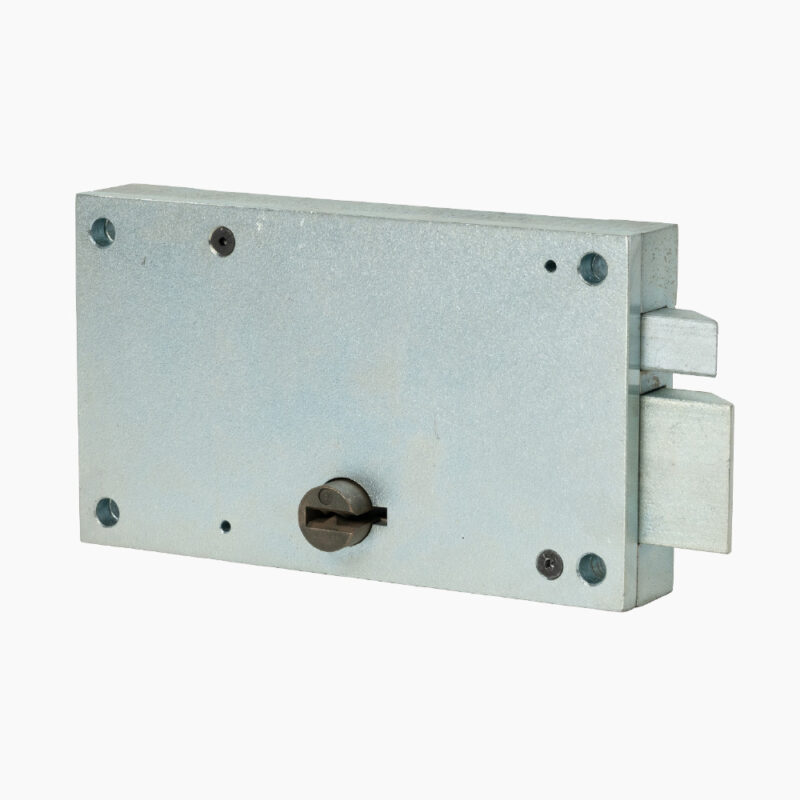

70 Mechanical Snaplock
The 70 Series Mechanical Snaplock is a swing door lock for use on cell door, corridor door, dayroom door and dormitory door applications. The 70 is also suitable for Control cabinets and storage rooms.
Operation Details
The 70 Series deadlatch is an automatic deadlock, designed for use in maximum security applications for day rooms, recreational areas, or dining rooms. It offers the convenience of slam locking.
The 70 Series operates by paracentric key, which releases the automatic deadlock and retracts the latchbolt.
