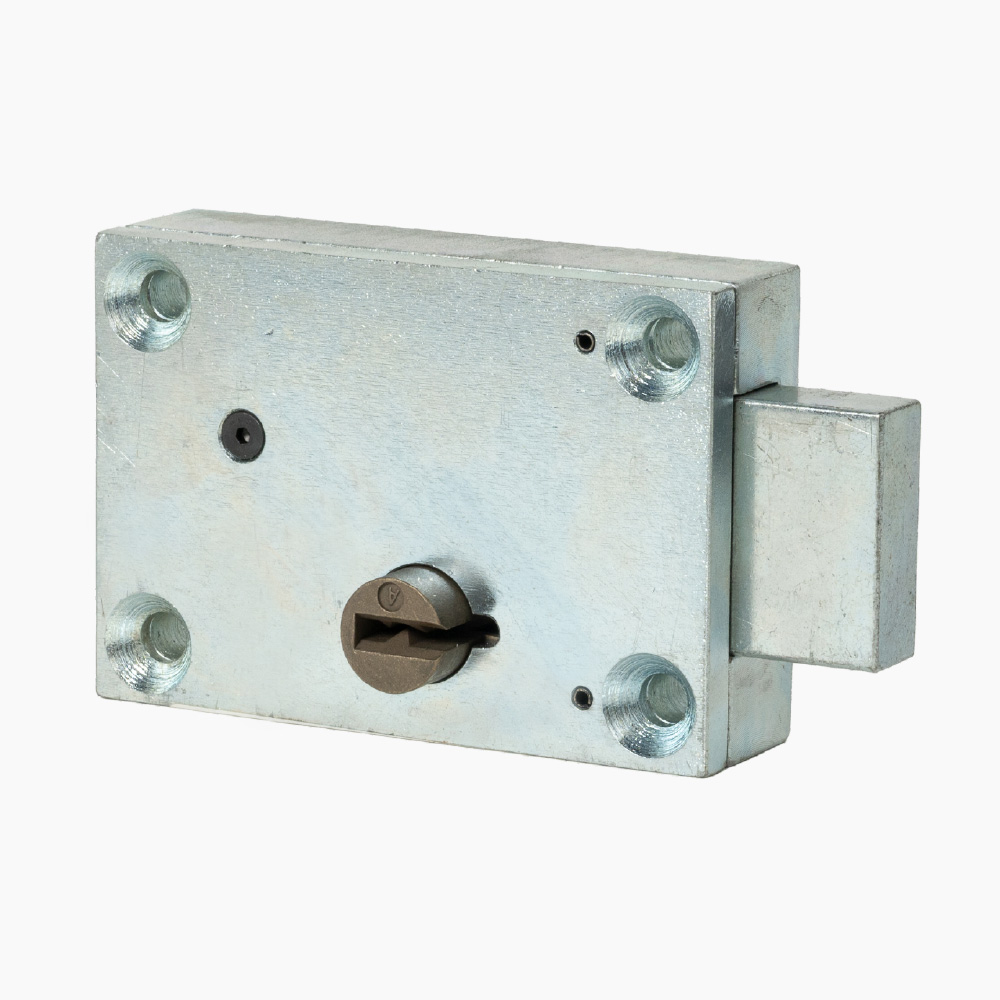

80 Mechanical Deadbolt
The 80 Series Mechanical Deadbolt is a solid deadbolt designed for cell doors, corridor doors and day room doors, for use in maximum security applications. They are also suitable for access doors, storage rooms and control cabinets. The 80 Series operates by paracentric key, which releases the deadlock and retracts the latchbolt.
Description
MECHANICAL
80 Mechanical Deadbolt
Additional Details
MECHANICAL
80 Mechanical Deadbolt
Standard Features
- 3/4” Bolt Throw
- 3 Hardened Steel Pins in Bolt
- 1 /2” or 1 1 /4” Projections
- 1/4” Cold Drawn Steel Cover
- Heavy Duty Cast Case
- Corrosive Resistant Parts
- Investment Cast Key Cylinder
- Heavy Duty Brass Tumblers
- 1 1 /2” x 3/4” Deadbolt
- All Zinc Plated Exterior
Optional Features
- 80KP - Standard Keeper
- 80SW - Keeper switch
- 80DB - Keeper with dust box
- 80SF - Surface mounted keeper
(Mounting screws included)
(See Escutcheons)
Mountings
RELATED PRODUCTS
70 Mechanical Snaplock
The 70 Series Mechanical Snaplock is a swing door lock for use on cell door, corridor door, dayroom door and dormitory door applications. The 70 is also suitable for Control cabinets and storage rooms.
Operation Details
The 70 Series deadlatch is an automatic deadlock, designed for use in maximum security applications for day rooms, recreational areas, or dining rooms. It offers the convenience of slam locking.
The 70 Series operates by paracentric key, which releases the automatic deadlock and retracts the latchbolt.

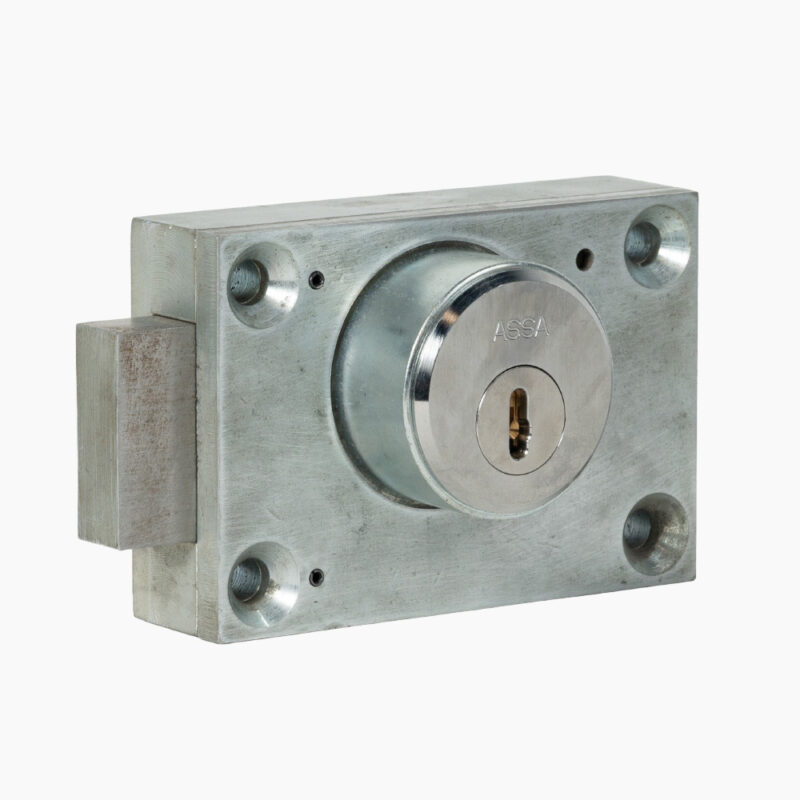

85 Mechanical Deadbolt
